W25Q64FV
6.2.41
Enable QPI (38h)
The W25Q64FV support both Standard/Dual/Quad Serial Peripheral Interface (SPI) and Quad Peripheral
Interface (QPI). However, SPI mode and QPI mode can not be used at the same t ime. “Enable QPI (38h)”
instruction is the only way to switch the device from SPI mode to QPI mode.
Upon power-up, the default state of the device upon is Standard/Dual/Quad SPI mode. This provides full
backward compatibility with earlier generations of Winbond serial flash memories. See Intruction Set
Table 1-3 for all supported SPI commands. In order to switch the device to QPI mode, the Quad Enable
(QE) bit in Status Register 2 must be set to 1 first, and an “Enable QPI (38h)” instruction must be issued .
If the Quad Enable (QE) bit is 0, the “Enable QPI (38h)” instruction will be ignored and the device will
remain in SPI mode.
See Instruction Set Table 4 for all the commands supported in QPI mode.
When the device is switched from SPI mode to QPI mode, the exsiting Write Enable and Program/Erase
Suspend status, and the Wrap Length setting will remain unchanged.
/CS
Mode 3
0
1
2
3
4
5
6
7
Mode 3
CLK
Mode 0
Mode 0
Instruction (38h)
DI
(IO 0 )
DO
High Impedance
(IO 1 )

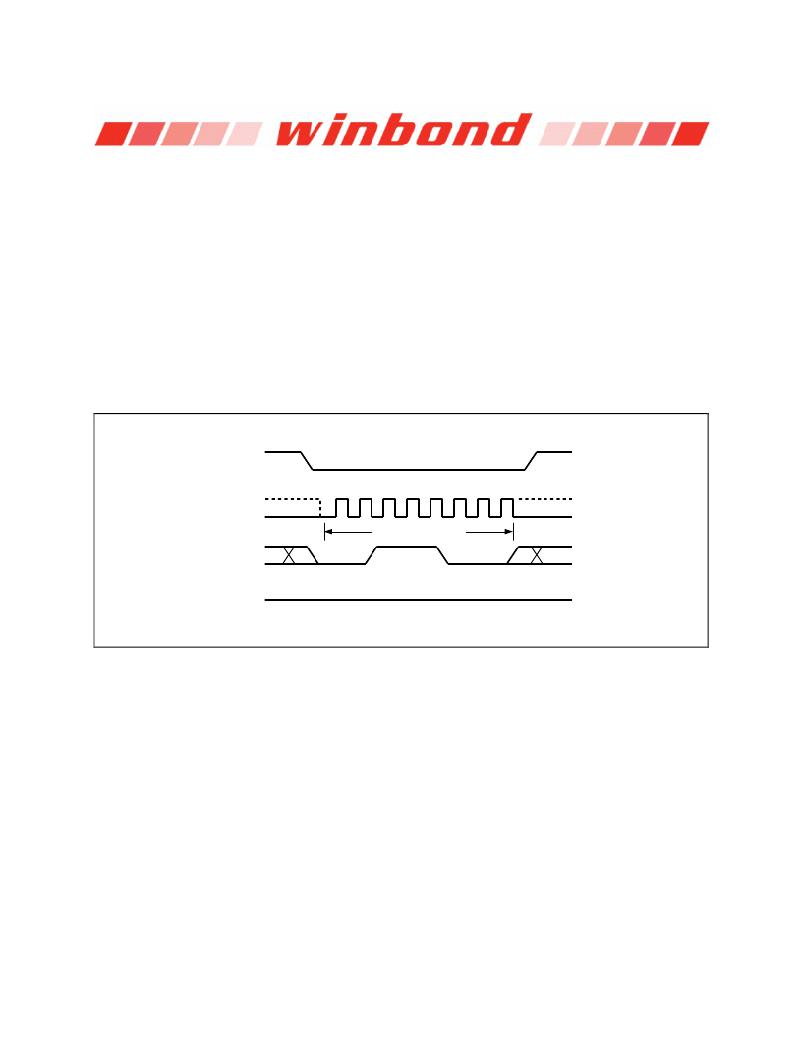

Figure 40. Enable QPI Instruction (SPI Mode only)
- 68 -
